REAL 365 sPECIAL EDITION
The Real 365 is renowned for its smooth navigation in rough seas, offering a calm and stable experience even in adverse conditions. With ample space to accommodate up to 16 people, the yacht benefits from excellent natural lighting through multiple windows along both sides. Its design is simple yet highly functional, ensuring practicality and comfort in both external and internal areas. The Real 365 is perfect for those seeking a reliable and comfortable vessel, providing exceptional performance and stability at sea.
GALLERY
SPECIFICATIONS
Overall Length: 10.92 m / 35.85 ft
Beam: 3.25 m / 10.66 ft
Air Draft: 2.71 m / 8.89 ft
Full Load Draft: 0.66 m / 2.17 ft
Maximum Power: 900 HP
Minimum Power: 400 HP
Load Capacity: 16 Passengers (70 Kg / 154.32 lbs Per Person)
Fuel Tank: 400 L / 105.67 gal
Water Tank: 160 L / 42.27 gal
BASIC KIT
DESCRIPTIVE MEMORANDUM
MATERIALS AND CONSTRUCTION TECHNIQUES:
Hull and deck with custom painting, coated with 2-component polyurethane varnish;
Sandwich composite with high-performance resin and divinicel;
Thermally and acoustically isolated engine compartments, also watertight according to ABNT standard no. 14574;
Bilges coated with gel coat;
External cap for refueling with fuel and freshwater;
03 Navigation lights with electrical harness, including for bilge and fresh water pumps;
Complete electrical harness, except optional electro-electronic components;
Drain for water drainage;
Grounding trailer with fixed casters;
External finishing trim in PVC and stainless steel;
Hydrolift System hull.

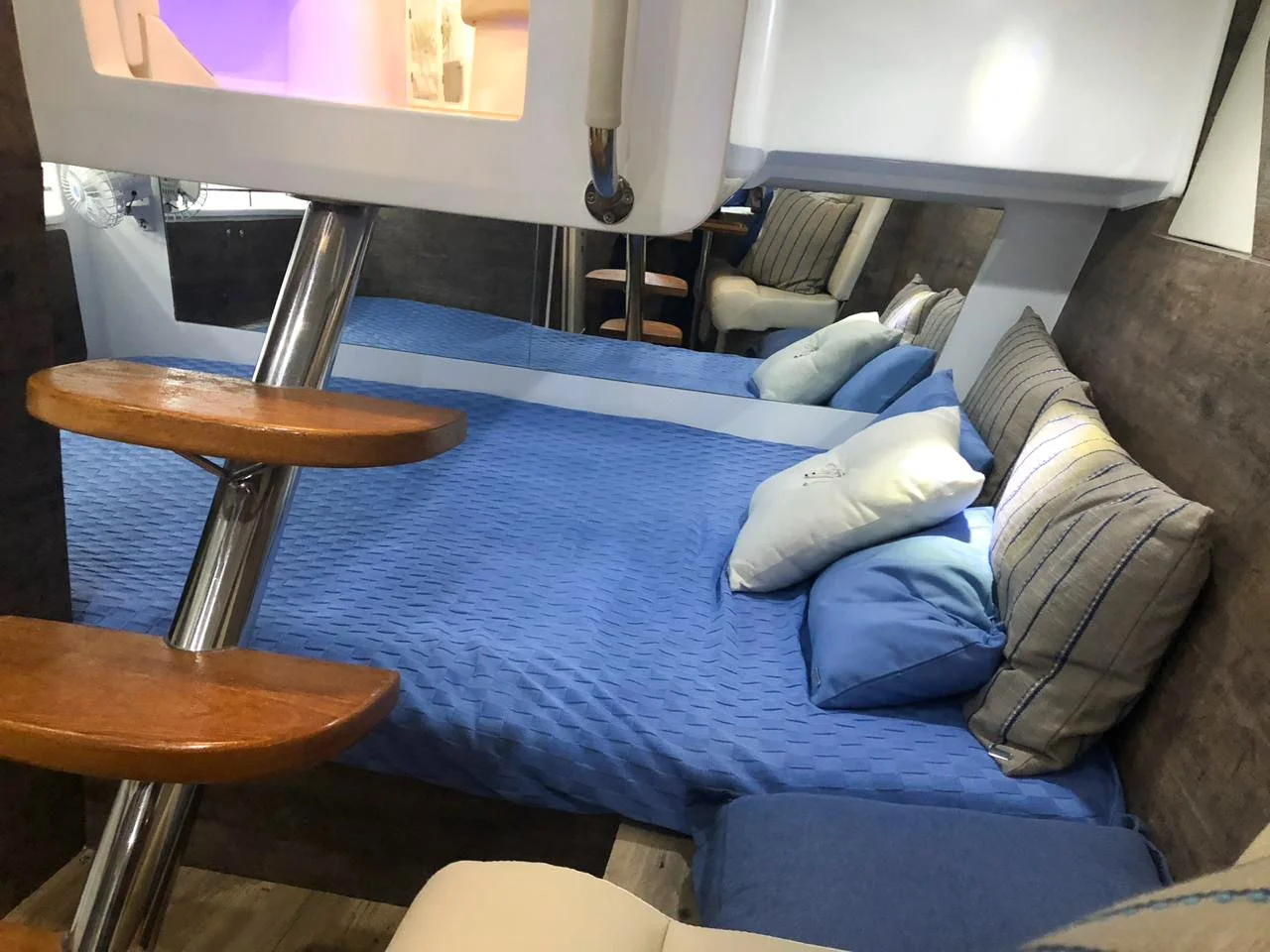

CABIN
BOW:
Maximum headroom 1.90m / 6.3 ft;
Skylight on the ceiling.
TO PORT:
King size double bed;
03 Side windows;
Direct and indirect lighting.
TO STARBOARD:
03 Side windows;
Style galley with with Corean countertop;
Stainless steel sink;
Console for microwave and minibar (80 liters) below the cabinet;
Head with headroom 1.85m / 6ft;
01 Adjustable shower;
01 Toilet;
02 Cabinets;
Corean countertop;
Shelf for television and DVD;
Sideboard.
TO STARBOARD:
Sofa for 03 people.
MIDSHIP:
Double bed measuring 1.95 x 1.28m;
01 sideboard;
Direct and indirect lighting.
DECK
BOW:
Anchor box with lid and lock;
Anchor and windlass;
Electric anchor windlass with remote control and stainless steel anchor;
Sun-bed for 02 people;
01 Stainless steel handle;
Stainless steel railing;
02 Stainless steel cleats;
01 Fresh water tank.

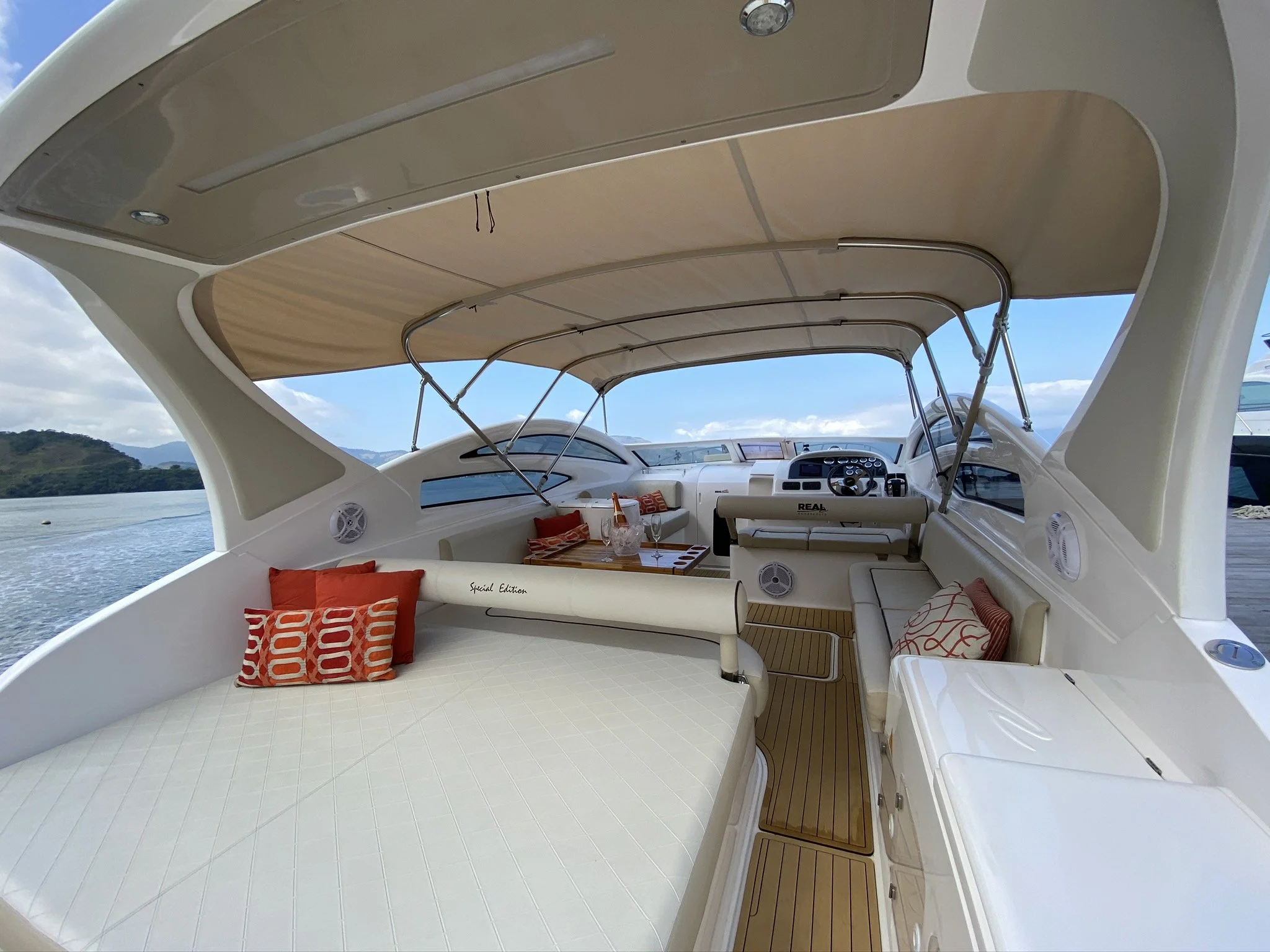

COCKPIT
MIDSHIP:
Fiberglass cabin entry door with central acrylic visor;
08 mm laminated glass windshield with central passage with closure;
02 stainless steel cleats.
TO STARBOARD:
Ergonomic panel for instruments and electronics and ladder for access to the bow;
Foldable ergonomic seat for pilot and co-pilot;
Behind the pilot's seat, side sofa for 04 people, with two boxes for storing objects under the seats;
Center table.
TO PORT:
Acrylic cup holders;
Sofa for 02 people;
Cooler and trash can with lid and storage compartment;
"L" shaped sofa for 08 people with storage boxes under the seats.
STERN:
Gourmet cabinet containing sink, barbecue area, trash can, cutting board, cooler, and storage compartment;
Targa with lighting and convertible acricolor canopy and stainless steel structure;
Stern sunbed for 04 people with foldable backrest;
02 Mooring cleats;
Wide stern shelf;
Retractable stainless steel ladder built into the stern shelf;
Box with lid.
ASSEMBLY KIT:
01 Steering wheel;
Compass;
Main switch, 02 180 amp 12v batteries, 02 battery cables with terminals;
03 2000 gph bilge pumps and 01 500 gph bilge pump with automatic switch, water outlet hose;
4.0 gpm transfer pump (Fresh water) with shower, hose, and support
ASSEMBLY COMPOSITION WITH OTHER ENGINES:
02 x MERCRUISER 5.0 MPI B3 260HP GASOLINE
02 x MERCRUISER 350 MAG B3 300 GASOLINE
02 x DIESEL VOLVO PENTA D3-200 DPS - 200 HP
02 x DIESEL MERCRUISER QSD 2.8 220 HP B3
02 x DIESEL MERCRUISER QSD 4.2 270 HP B3
02 x DIESEL VOLVO PENTA D3-220 -DPS 220 HP
01 x DIESEL VOLVO D3-220 DPS JOYSTICK PAIR
02 x DIESEL MERCRUISER QSD 2.8 220 B3 DTS
01 x MERCRUISER AXIUS PAIR 6.2 300 HP B3 GASOLINE
02 x MERCRUISER TDI 260 HP DTS B3 DIESEL
01 x PAIR MERCRUISER AXIUS TDI 260 B3 DIESEL
02 x MERCRUISER 4.5 MPI 250 HP B3 GASOLINE
02 x MERCRUISER 4.5 MPI B3 DTS 250 HP GASOLINE
01 x PAIR MERCRUISER AXIUS QSD 220 B3 JOYSTICK
02 x MERCRUISER 6.2 350 HP B3 GASOLINE
